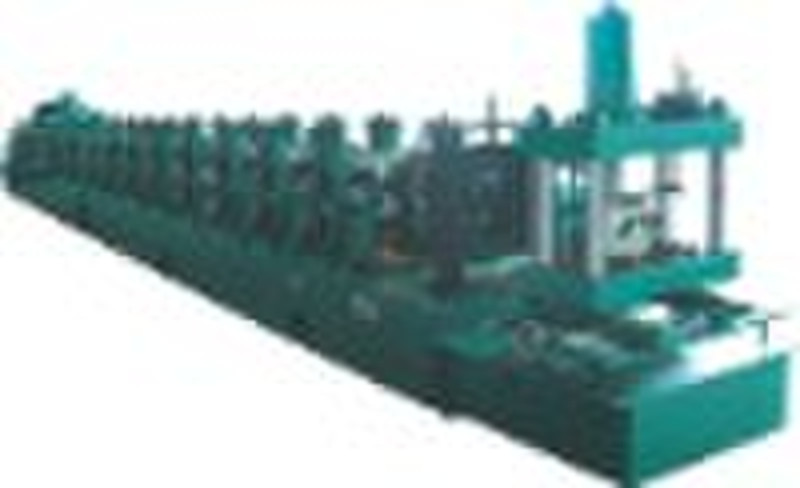

Guard rails roll forming machine

Specification of the line Thickness of sheet Width of sheet Length of sheet Weight of coil Coil inside diameter Coil outside diameter Line forming speed : 2.5mm 3.2mm : 483mm(MAX) : 6,000mm(MAX) : 5,000kg(MAX) :508mm / 610mm : 1,500mm(MAX) : 16meter(MAX)Working Flow Decoiler alignment guiding roller nine roller levering 250T hydraulic punching hole panel transport table swift supplier photoelectrical switch roller guiding table 13 group main cold forming body roller finished product supportable. Main parts of the equipment. The main parts of this guard rail line includes: uncoiler, leveling and adjustable roller, nine roller leveling system, 250T four post hydraulic press (punching holes of both end, and cut panel at same time), plat panel punch model (punching head and cutter each set as spare part), panel support table, quick material supplier system, photoelectrical switch, roller guiding table, 13 stands of roll group, 4 group of stand roller,11 sets synchronization distribute gear box, ZQ650 reducer, 37kw stepless adjustable motor, 6m finished product support table, control box, as for spare part including one set of gear box and others.(the spare parts we supply can guarantee the quality for one year).
