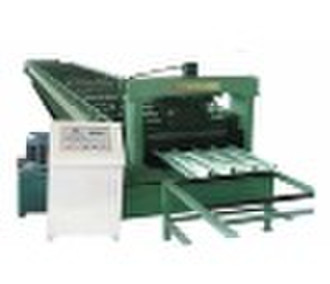

HZ51-190-760 Decking Machine

Introduction Model HZ51-190-760 series decking forming machine consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, supporter table. The corrugated profile sheet produced by this machine has high strength with big rib, which adheres well to concrete. It best to be used as the floor of high buildings, and the cost of such floor is low. Technical Parameters> Material Spec Thickness of Coil Sheet Main Motor Power Forming Speed Hydraulic Station Power Quantity of Stands Hydraulic Pressure Controlling System Index Error of Length Total Weight Voltage: Galvanized steel sheet : 0.8 --1.2 mm : 18.5kw : 10--12m/min : 3kw : About 24 groups : 10 12Mpa : PLC : 10m?mm : About 1800kg : 380V 3 phase 60Hz or to the buyer requirement Standard Equipment of Machine Passive uncoiler Guiding equipment Rolling forming equipment Pressing equipment Post-cut equipment Hydraulic station PLC controlling desk Supporter table Security cover (optional): 1pcs : 1set : 1set : 1set : 1set : 1pcs : 1 pcs : 2 pcs : 1set
